Arthas常用命令使用

一、启动Arthas

1
java -jar arthas-boot.jar

二、表达式核心变量

匹配表达式和观察表达式核心判断变量

变量名 变量解释
loader 本次调用类所在的 ClassLoader
clazz 本次调用类的 Class 引用
method 本次调用方法反射引用
target 本次调用类的实例
params 本次调用参数列表,这是一个数组,如果方法是无参方法则为空数组
returnObj 本次调用返回的对象。当且仅当 isReturn==true 成立时候有效,表明方法调用是以正常返回的方式结束。如果当前方法无返回值 void,则值为 null
throwExp 本次调用抛出的异常。当且仅当 isThrow==true 成立时有效,表明方法调用是以抛出异常的方式结束。
isBefore 辅助判断标记,当前的通知节点有可能是在方法一开始就通知,此时 isBefore==true 成立,同时 isThrow==falseisReturn==false,因为在方法刚开始时,还无法确定方法调用将会如何结束。
isThrow 辅助判断标记,当前的方法调用以抛异常的形式结束。
isReturn 辅助判断标记,当前的方法调用以正常返回的形式结束。

官网文档:https://arthas.aliyun.com/doc/advice-class.html

三、命令列表

命令 描述
dashboard 当前系统的实时数据面板–直观查看CPU和内存使用
getstatic 查看类的静态属性
heapdump 打印堆信息,类似与 jmap
jvm 查看当前JVM的信息
logger 查看和修改logger
memory 查看JVM的内存信息
thread 查看当前JVM的线程堆栈信息
sysenv 查看JVM的环境变量–系统环境变量信息
sysprop 查看和修改JVM的系统属性
vmoption 查看和修改 JVM 里诊断相关的 option
classloader 查看classloader信息
jad 反编译已加载类的源码
sc 查看JVM已加载的类信息
sm 查看JVM已加载类的方法信息
stack 输出当前方法被调用的调用路径
trace 方法内部调用路径,并输出方法路径上每个节点的耗时
watch 方法执行数据观测

1、dashboard

参数说明

参数名称 参数说明
-i 刷新实时数据的时间间隔 (ms),默认 5000ms
-n 刷新实时数据的次数

使用示例

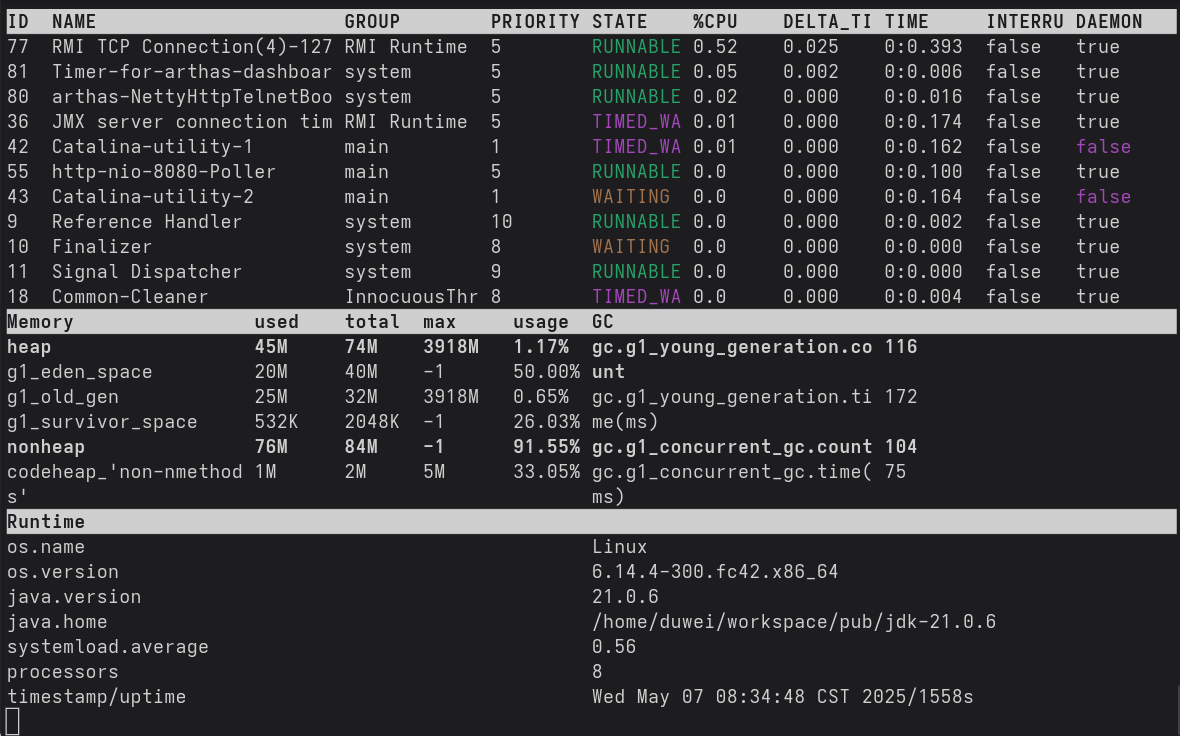

每3秒刷新一次数据,总共刷新3次

1
dashbaord -i 3000 -n 3

image-20250507083504830

CPU数据说明

  • ID: Java 级别的线程 ID,注意这个 ID 不能跟 jstack 中的 nativeID 一一对应。
  • NAME: 线程名
  • GROUP: 线程组名
  • PRIORITY: 线程优先级, 1~10 之间的数字,越大表示优先级越高
  • STATE: 线程的状态
  • CPU%: 线程的 cpu 使用率。比如采样间隔 1000ms,某个线程的增量 cpu 时间为 100ms,则 cpu 使用率=100/1000=10%
  • DELTA_TIME: 上次采样之后线程运行增量 CPU 时间,数据格式为
  • TIME: 线程运行总 CPU 时间,数据格式为分:秒
  • INTERRUPTED: 线程当前的中断位状态
  • DAEMON: 是否是 daemon 线程

2、getstatic

查看类的静态属性,支持查看privatepublic属性,官网推荐直接使用ognl

语法

1
getstatic [-c <value>] [-x <value>] [-E] class-pattern field-pattern [express]

参数说明

参数名称 参数说明
-c 指定classloader哈希值,可以通过sc -d获取哈希值或 classloader -t获取
class-pattern 需要查看的类全路径
field-pattern 需要查看的属性,支持模糊匹配,如果添加选项-E时,会按照严格模式匹配

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
// 获取属性
[arthas@14691]$ getstatic cn.probiecoder.arthas_demo.TestController map
field: map
@HashMap[
@String[key1]:@String[value1],
@String[key2]:@String[value2],
@String[key3]:@String[value3],
]

// 查看类下边所有属性
[arthas@14691]$ getstatic -c 76ed5528 cn.probiecoder.arthas_demo.TestController *
field: MESSAGE
@String[Hello, Arthas!]
field: GETSTATIC_MESSAGE
@String[getStaticMessage]
field: map
@HashMap[
@String[key1]:@String[value1],
@String[key2]:@String[value2],
@String[key3]:@String[value3],
]

// 模糊匹配属性
[arthas@14691]$ getstatic -c 76ed5528 cn.probiecoder.arthas_demo.TestController *M*
field: MESSAGE
@String[Hello, Arthas!]
field: GETSTATIC_MESSAGE
@String[getStaticMessage]

3、heapdump

打印堆信息,类似于jmap

语法

1
heapdump [-l] [file]

参数说明

参数名称 参数说明
-l dump live 对象,不添加时dump所有对象

使用示例

1
2
3
4
5
6
7
8
9
// dump所有对象
[arthas@14691]$ heapdump /home/duwei/arthas-output/heap.hprof
Dumping heap to /home/duwei/arthas-output/heap.hprof ...
Heap dump file created

// dump live 对象
[arthas@14691]$ heapdump -l /home/duwei/arthas-output/heap_live.hprof
Dumping heap to /home/duwei/arthas-output/heap_live.hprof ...
Heap dump file created

dump时需要确保路径已经创建,否则会报错:heap dump error: No such file or directory

4、jvm

查看当前 JVM 信息,会输出当前内存、线程、GC等信息

语法

1
jvm

使用示例

1
2
3
4
5
6
7
8
9
10
11
// 会输出以下类别信息,具体内容省略
[arthas@14691]$ jvm
RUNTIME
CLASS-LOADING
COMPILATION
GARBAGE-COLLECTORS
MEMORY-MANAGERS
MEMORY
OPERATING-SYSTEM
THREAD
FILE-DESCRIPTOR

logger

查看logger 信息,更新 logger level,临时调整日志记录级别用于问题定位会很有用

语法

1
logger [-c <value>] [-l <value>] [-n <value>]

参数说明

参数名称 参数说明
-c 指定classloader,可以通过sc -d获取classloader的哈希值
-l 指定level级别
-n 指定logger名字,这里可以为类路径

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// 查看所有的logger
[arthas@44455]$ logger
name ROOT
class ch.qos.logback.classic.Logger
classLoader jdk.internal.loader.ClassLoaders$AppClassLoader@76ed5528
classLoaderHash 76ed5528
level INFO
effectiveLevel INFO

// 更新指定类或包的日志级别
[arthas@44455]$ logger -n cn.probiecoder.arthas_demo.TestController -l debug
Update logger level success.
[arthas@44455]$ logger -n cn.probiecoder.arthas_demo -l debug
Update logger level success.

5、memory

查看JVM内存信息,如果只查看heapnonheap使用情况,可以使用dashboard动态刷新监控

语法

1
memory

使用示例

可以使用java.nio.ByteBuffer.allocateDirect(1024 * 1024 * 10); // 10MB分配对外直接内存

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[arthas@44455]$ memory
Memory used total max usage
heap 37M 76M 3918M 0.95%
g1_eden_space 10M 40M -1 25.00%
g1_old_gen 25M 34M 3918M 0.66%
g1_survivor_space 1M 2M -1 65.71%
nonheap 86M 88M -1 97.96%
codeheap_'non-nmethods' 1M 2M 5M 33.16%
metaspace 57M 58M -1 98.68%
codeheap_'profiled_nmethods' 15M 15M 117M 13.29%
compressed_class_space 6M 7M 1024M 0.67%
codeheap_'non-profiled_nmethods' 5M 5M 117M 4.28%
mapped 0K 0K - 0.00%
direct 14M 14M - 100.00%
mapped - 'non-volatile memory' 0K 0K - 0.00%

6、thread

查看当前线程信息,查看线程的堆栈

语法

1
thread [--all] [-b] [-i <value>] [--state <value>] [-n <value>] [id]

参数说明

参数名称 参数说明
--all 列出所有线程
-b 找出当前阻塞其他线程的线程
-i 指定采样时间间隔
--state 根据线程状态过滤,NEW, RUNNABLE, TIMED_WAITING, WAITING, BLOCKED, TERMINATED
-n 指定要查看的线程数量,按照CPU使用率降序排序
id 线程id,查看指定线程的堆栈信息

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// 死锁检测
[arthas@44455]$ thread -b
"Thread-4" Id=80 BLOCKED on java.lang.Object@12ea72d3 owned by "Thread-5" Id=81
at app//cn.probiecoder.arthas_demo.TestController.lambda$0(TestController.java:89)
- blocked on java.lang.Object@12ea72d3
- locked java.lang.Object@16629d6a <---- but blocks 1 other threads!
at app//cn.probiecoder.arthas_demo.TestController$$Lambda/0x00007fa97475dcd0.run(Unknown Source)
at java.base@21.0.6/java.lang.Thread.runWith(Thread.java:1596)
at java.base@21.0.6/java.lang.Thread.run(Thread.java:1583)


// 根据状态过滤
[arthas@44455]$ thread --state BLOCKED
Threads Total: 39, NEW: 0, RUNNABLE: 17, BLOCKED: 2, WAITING: 13, TIMED_WAITING: 7, TERMINATED: 0
ID NAME GROUP PRIORITY STATE %CPU DELTA_TI TIME INTERRU DAEMON
80 Thread-4 main 5 BLOCKED 0.02 0.000 0:0.002 false true
81 Thread-5 main 5 BLOCKED 0.01 0.000 0:0.002 false true

// 查看最繁忙的3个线程,采样时间为3秒内
[arthas@44455]$ thread -i 3000 -n 3

7、sysenv

查看当前JVM的环境属性,操作系统环境变量信息

语法

1
sysenv [env-name]

参数说明

参数名称 参数说明
env-name 可选,默认展示所有的环境属性,指定时输出指定属性值

使用示例

1
2
3
4
[arthas@44455]$ sysenv LANG
KEY VALUE
--------------------------------------------------------------------------------------------------------
LANG en_US.UTF-8

8、sysprop

查看或修改当前JVM 的系统属性

语法

1
sysprop [property-name] [property-value]

参数说明

参数名称 参数说明
property-name 属性名称,默认输出所有属性
property-value 属性修改后的值

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[arthas@44455]$ sysenv spring.profiles.active
KEY VALUE
--------------------------------------------------------------------------------------------------------
spring.profiles.active null

[arthas@44455]$ sysprop spring.profiles.active dev
Successfully changed the system property.
KEY VALUE
--------------------------------------------------------------------------------------------------------
spring.profiles.active dev

[arthas@44455]$ sysprop spring.profiles.active
KEY VALUE
--------------------------------------------------------------------------------------------------------
spring.profiles.active dev

9、vmoption

查看,更新 VM 诊断相关的参数,在更新option时,option需要支持运行时动态更新

语法

1
vmoption [name] [value]

参数说明

参数名称 参数说明
name option的名称
value 修改后的值

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// 查看指定option
[arthas@44455]$ vmoption HeapDumpBeforeFullGC
KEY VALUE ORIGIN WRITEABLE
--------------------------------------------------------------------------------------------------------
HeapDumpBeforeFullGC false DEFAULT true
// 修改指定option
[arthas@44455]$ vmoption HeapDumpBeforeFullGC true
Successfully updated the vm option.
NAME BEFORE-VALUE AFTER-VALUE
-------------------------------------------------
HeapDumpBeforeFullGC false true
[arthas@44455]$ vmoption HeapDumpBeforeFullGC
KEY VALUE ORIGIN WRITEABLE
--------------------------------------------------------------------------------------------------------
HeapDumpBeforeFullGC true MANAGEMENT true

10、classloader

展示JVM中所有的classloader信息,可以加载指定类

语法

1
classloader -t

参数说明

参数名称 参数说明
-t 查看ClassLoader的继承树

使用示例

1
2
3
4
5
6
[arthas@44455]$ classloader -t
+-BootstrapClassLoader
+-jdk.internal.loader.ClassLoaders$PlatformClassLoader@4ca1ec81
+-com.taobao.arthas.agent.ArthasClassloader@734cb0e4
+-jdk.internal.loader.ClassLoaders$AppClassLoader@76ed5528
+-sun.reflect.misc.MethodUtil@1af4d51c

11、jad

反编译指定已加载类的源码

语法

1
jad [-c <value>] [--lineNumber <value>] [--source-only] class-pattern [method-name]

参数说明

参数名称 参数说明
-c 指定classloader的哈希值
--lineNumber 反编译以后是否显示行号 true false
--source-only 默认情况下,反编译结果里会带有ClassLoader信息,通过--source-only选项,可以只打印源代码
class-pattern 需要反编译的类路径
method-name 方法名,支持指定方法反编译

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[arthas@44455]$ jad -c 76ed5528 --source-only --lineNumber false cn.probiecoder.arthas_demo.TestController  threadPoolBlock
@GetMapping(value={"/thread_pool_block"})
public String threadPoolBlock() {
ExecutorService executor = Executors.newFixedThreadPool(1);
executor.submit(() -> {
try {
Thread.sleep(10000L);
}
catch (InterruptedException e) {sc
Thread.currentThread().interrupt();
}
});
return "Thread pool block test started";
}

12、sc(search-class)

查看 JVM 已加载的类信息

语法

1
sc [-d] [-c <value>] [-f] class-pattern

参数说明

参数名称 参数说明
-c 指定classloader哈希值
-f 输出当前类的成员变量信息(需要配合参数-d 一起使用)
-d 输出当前类的详细信息,包括这个类所加载的原始文件来源、类的声明、加载的 ClassLoader 等详细信息。
如果一个类被多个 ClassLoader 所加载,则会出现多次
class-pattern 类路径

使用示例

1
2
3
4
5
6
7
8
[arthas@73802]$ sc -d -f cn.probiecoder.arthas_demo.TestController
class-info cn.probiecoder.arthas_demo.TestController
name cn.probiecoder.arthas_demo.TestController
isInterface false
isAnnotation false
isEnum false
isAnonymousClass false
.....

13、sm

查看已加载类的方法信息

语法

1
sm [-c <value>][-d] class-pattern [method-pattern]

参数说明

参数名称 参数说明
-c 指定classloader哈希值
-d 输出当前类的详细信息,包括这个类所加载的原始文件来源、类的声明、加载的 ClassLoader 等详细信息。
如果一个类被多个 ClassLoader 所加载,则会出现多次
class-pattern 类路径
method-pattern 方法名称,支持*模糊匹配,不指定时列出当前类下所有的方法

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[arthas@73802]$ sm -d cn.probiecoder.arthas_demo.TestController throwException
declaring-class cn.probiecoder.arthas_demo.TestController
method-name throwException
modifier public
annotation org.springframework.web.bind.annotation.GetMapping
parameters
return void
exceptions
classLoaderHash 76ed5528

// 列出所有方法
[arthas@73802]$ sm cn.probiecoder.arthas_demo.TestController
cn.probiecoder.arthas_demo.TestController <init>()V
cn.probiecoder.arthas_demo.TestController throwException()V
......

14、stack

输出当前方法被调用的调用路径

语法

1
stack class-pattern [method-pattern] [condition-express]

参数说明

参数名称 参数说明
class-pattern 类路径
method-pattern 监控方法,可选,为空时可以跟踪类下所有方法
condition-express 条件表达式,一个合法的ognl表达式,可以参考核心变量,#cost:执行时间,使用条件表达式时,监控方法需要指定

使用示例

1
2
3
4
5
// 按照时间过滤
stack cn.probiecoder.arthas_demo.TestController longRunning '#cost>2000'

// 匹配第一个参数的长度为3
stack cn.probiecoder.arthas_demo.TestController hello params[0].length==3

15、trace

方法内部调用路径,并输出方法路径上的每个节点上耗时,可以用于分析方法执行性能瓶颈

语法

1
trace [-n <value>] [--skipJDKMethod <value>] class-pattern method-pattern [condition-express]

参数说明

参数名称 参数说明
-n 指定捕捉结果的次数,达到限制次数时直接停止监听
--skipJDKMethod 是否包含 jdk 里的函数调用,默认false
class-pattern 类路径
method-pattern 方法名,支持*通配匹配
condition-express 过滤条件表达式,符合ognl的表达式,支持#cost进行时间过滤

使用示例

1
2
3
4
5
6
7
8
9
// 启用jdk方法调用监控,限制监听次数
[arthas@73802]$ trace --skipJDKMethod true -n 1 cn.probiecoder.arthas_demo.TestController longRunning '#cost>2000'
Press Q or Ctrl+C to abort.
Affect(class count: 1 , method count: 1) cost in 35 ms, listenerId: 20
`---ts=2025-05-08 01:16:40.324;thread_name=http-nio-8080-exec-2;id=46;is_daemon=true;priority=5;TCCL=org.springframework.boot.web.embedded.tomcat.TomcatEmbeddedWebappClassLoader@5e8507f1
`---[2200.492615ms] cn.probiecoder.arthas_demo.TestController:longRunning()

Command execution times exceed limit: 1, so command will exit. You can set it with -n option.

16、watch

函数执行数据观测,能观察到的范围为:返回值抛出异常入参,通过编写 OGNL 表达式进行对应变量的查看

语法

1
watch [-b] [-e] [-f] [-s] [-n <value>] class-pattern method-pattern [express] [condition-express]

参数说明

参数名称 参数说明
-b 函数调用之前观察,由于观察事件点是在函数调用前,此时返回值或异常均不存在
-e 函数异常之后观察
-f 函数结束之后(正常返回和异常返回)观察,默认值
-s 函数成功返回之后观察
-n 执行监控次数
class-pattern 要监控的类路径
method-pattern 方法匹配模式,可以通过*进行通配匹配
express 观察表达式,默认值:{params, target, returnObj},围绕Advice通知对象,get请求使用params观察时入参为空,需要使用params[0]
condition-expression 条件表达式,合法的ognl表达式,根据条件过滤拦截

使用示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// 方法调用前监听
[arthas@73802]$ watch -b cn.probiecoder.arthas_demo.TestController hello {params[0],returnObj}
Press Q or Ctrl+C to abort.
Affect(class count: 1 , method count: 1) cost in 28 ms, listenerId: 28
method=cn.probiecoder.arthas_demo.TestController.hello location=AtEnter
ts=2025-05-08 01:38:32.377; [cost=0.006553ms] result=@ArrayList[
@String[waw],
null,

// 限制监听次数
[arthas@73802]$ watch -b -n 1 cn.probiecoder.arthas_demo.TestController hello {params[0],returnObj}
Press Q or Ctrl+C to abort.
Affect(class count: 1 , method count: 1) cost in 38 ms, listenerId: 29
method=cn.probiecoder.arthas_demo.TestController.hello location=AtEnter
ts=2025-05-08 01:41:43.892; [cost=0.022054ms] result=@ArrayList[
@String[waw],
null,
]
Command execution times exceed limit: 1, so command will exit. You can set it with -n option.

三、后台任务

需要监控偶发性行为时,可以借助后台任务捕获,同时将捕获结果可以输出到文件

1、执行后台任务

在命令最后边添加 * 执行后台任务,命令不会阻断终端屏幕,可以继续执行其他任务

1
trace Class method &

2、查看后台任务

1
jobs
1
2
3
4
5
6
7
[arthas@252]$ jobs
[10]*
Running trace org.apache.aries.spifly.Util storeContextClassloader &
execution count : 0
start time : Mon May 12 19:33:48 CST 2025
timeout date : Tue May 13 19:33:48 CST 2025
session : eb3cedf4-75a1-488c-af93-df3405ea7398 (current)

结果会输出任务id、任务状态,已执行捕获次数等信息

3、停止命令

异步执行的命令,如果希望停止,可执行`kill

4、任务输出重定向

可通过>或者>>将任务输出结果输出到指定的文件中,可以和&一起使用,实现 arthas 命令的后台异步任务

1
$ trace Test t >> test.out &

四、附录

官方文档:https://arthas.aliyun.com/doc/quick-start.html

OGNL表达式官网:https://commons.apache.org/dormant/commons-ognl/language-guide.html

命令参数:[xx]选项为可选参数


Arthas常用命令使用
https://probiecoder.cn/java/arthas.html
作者
duwei
发布于
2025年4月22日
许可协议
